Echopanel® Element Ceiling Solution

Echopanel® Element Ceiling Solution - Woven Image

Lead Time: 2-4 weeks

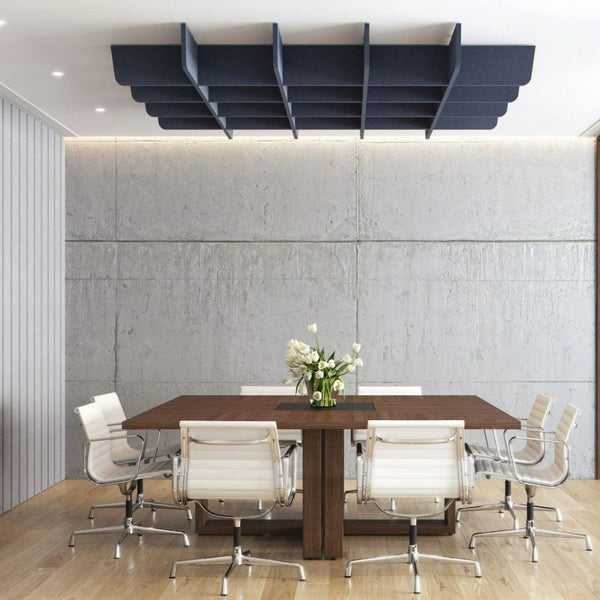

EchoPanel® Element is a range of practical yet design-led acoustic ceiling solutions. The system consists of custom cut EchoPanel® ’blades’, which come in a thickness of 24mm. These are easy to install, fixing directly to a ceiling or attaching to a ceiling grid using cleverly designed translucent clip attachments for a completely seamless finish. The clips also enable the panels to be moved easily if the layout of the interior needs to change.

Element can be directly fixed to the ceiling slab or attached to a ceiling grid system with the use of cleverly designed installation clips. An optional suspension kit can be ordered to suspend Element at a height of your choice, allowing it to float and provide sound absorbing benefits to targeted areas.

Product Features:

• Box of 8 cut Echopanel® Blades and 16 ceiling clips. Suspension kit sold separately.
• Composition: 100% PET (60% recycled)
• Weight: 14kg per kit
• Dimensions (assembled): 2350mm x 2350mm x 215mm
• Thickness: 24mm (+/-7%)
• Sound Absorption:
• weighted sound absorption coefficient (direct fix): 0.40
• sound absorption  average (direct fix): 0.36
• noise reduction coefficient (direct fix):0.35
• Lightfastness: ISO105-B02-1994 rating:6-7
• Fire Test:
• ISO 9750: Group 1
• ASTM E84 unadhered: Class 2 or B
• bs en 13501.1: ClassificationB-S1, D0
• Sustainability: Echopanel® achieves global Greentag Cerfitication

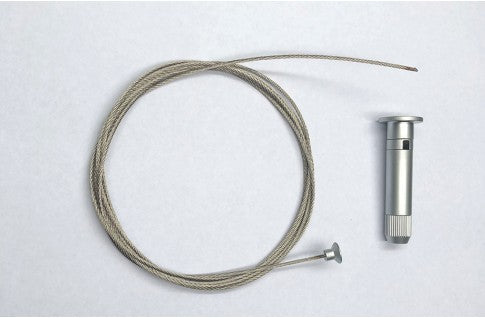

• Optional suspension kit sold separately

Colour Options:

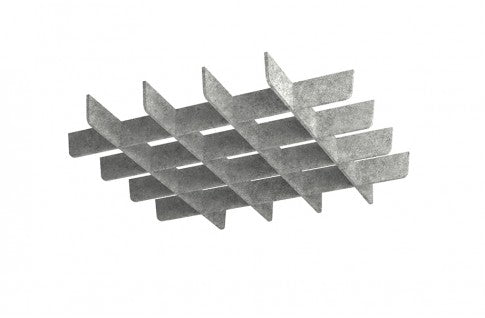

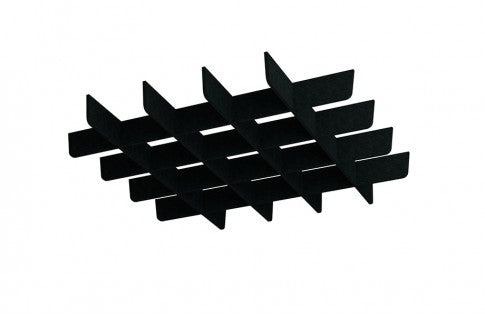

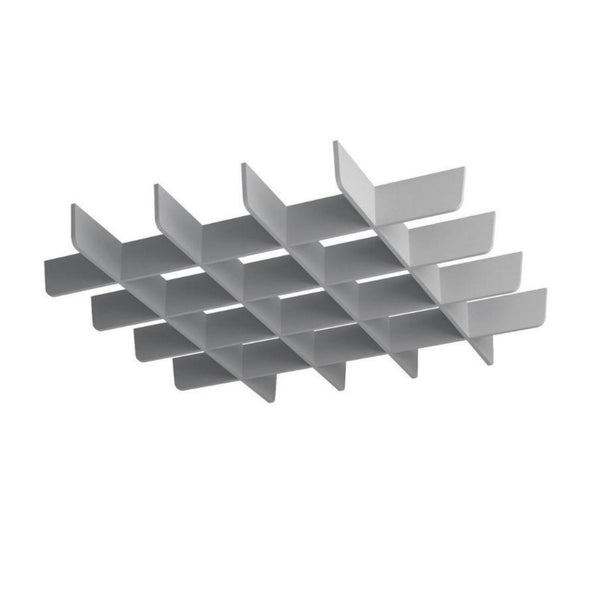

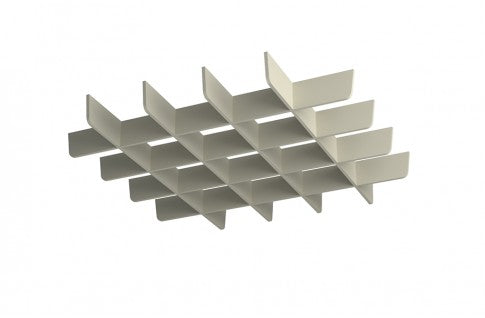

• Frost (101); Viridian Green (325); Ivy (303); Navy (365); Pebble (402); Grey (442); Vanilla (468); Charcoal (542); Onyx (550); & Cream (908)

SA Contribution:

We are focused on supporting local manufacturing companies. This means we supply our furniture without packaging which is great for the environment but not great for shipping to locations outside our local area. Online orders can only be delivered to the Adelaide metro area. You will need to contact us directly to arrange shipping outside of the Adelaide Metro area. Please refer to the Shipping & Returns page for further information.

This item is produced specifically for your order. Please ensure you select carefully as we do not provide refunds if you change your mind.

We have made every effort to display as accurately as possible the colours and images of our products that appear at the store. We cannot guarantee that your computer monitor's display of any colour will be accurate.

Contact us for custom options or finishes not available online and deliveries outside the Adelaide metro area.
